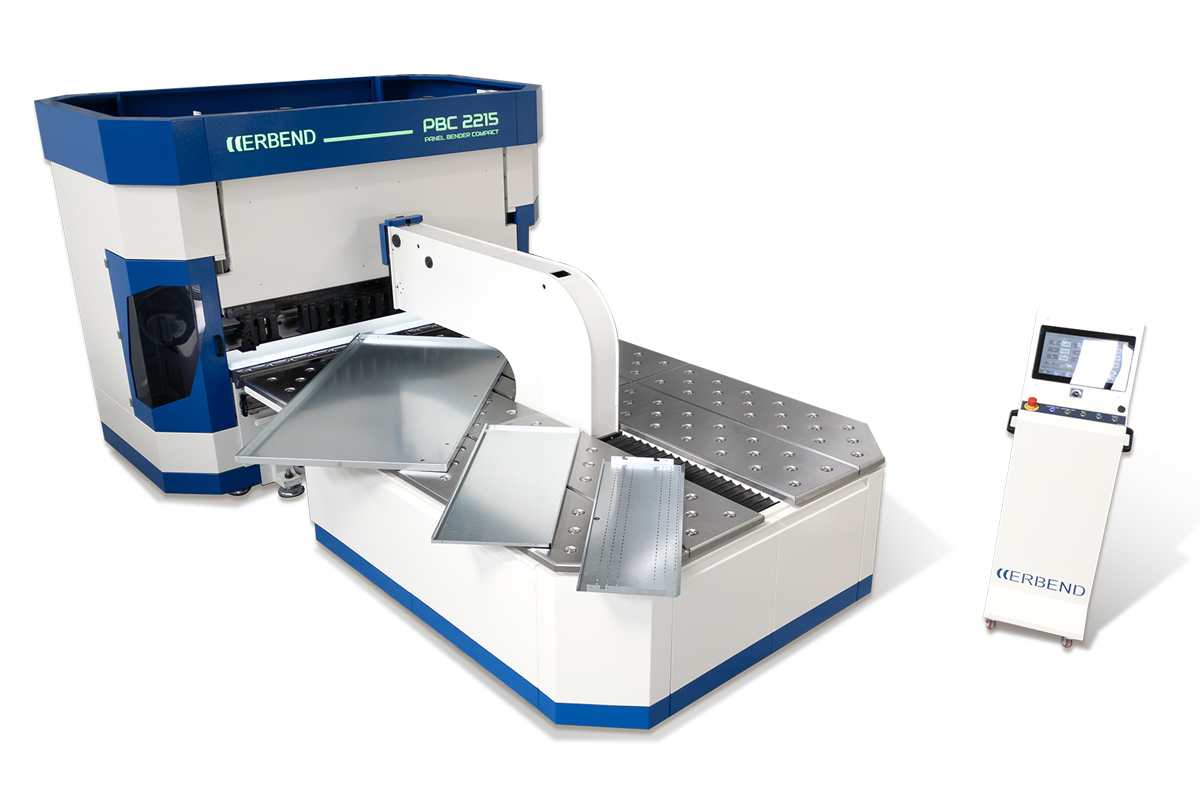

PBC Series Panel Bender Compact
It has a sheet-holding system
In ERFOLD CNC control system, each side bend is programmed individually and profile view of the side is shown on the screen after each bend is programmed.
Each process type on the sides (normal bend,hemming,large radius etc.) is defined,and bending/process length is entered numerically. Application Areas
Application Areas
Stainless furniture / trims
Panels
Metal architectural accessories and illumination covers
Electrical cabinets and panels
Professional kitchen equipments
Capacity and Dimensions
• 400 mm clamping beam opening and 200 mm high tools upgrade.
• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
• Motorized folding beam adjustment.
• Pneumatic goat foot quick clamping.
• Manual crowning system.
• Feather grooves with solid lower beam tool without channels.
• Segmented bottom or folding beam tools.
